The Sur-Ron Light Bee stock swingarm is not a bad part. It does the job Sur-Ron designed it for: light trail use, measured riding, factory-spec power.
The problem starts the day the bike steps outside that envelope.
More power. Harder riding. Harder terrain. The part holding the rear of the machine together runs out of margin before the rider does.
What gives up first isn't a fracture. It's a behavior.
The stock arm starts to twist under load. The central section is too thin to absorb the forces of cross or enduro use. The rear dropout, where the wheel axle sits, lacks thickness. The ball bearings in the pivot aren't designed for high, repeated radial loads.
The result isn't always visible. It's a feeling. The rear of the bike floats. The line goes vague when you push. And a rider who doesn't feel secure doesn't push past his limit.
When the failure becomes mechanical, it doesn't warn for long: the arm deforms, then it breaks.
The 7075 question comes up every time someone talks about high-end aluminum parts. It's harder, stiffer at equal section, lighter at equal strength. On paper, it should win.
On a swingarm, it loses.
7075 doesn't weld. More precisely, it welds badly, and it loses all of its hardness in the process. No heat treatment can bring it back. For a part designed as a welded monobloc, 7075 is out from the start.
6061-T6 is the opposite. It welds, and it recovers its mechanical properties when the T6 temper is properly restored after welding. It's the industry standard for welded structural parts: high-end mountain bike frames, aerospace structures, motorcycle swingarms.
Well drawn, well sized, well treated, it does the job.
One detail worth knowing: the stock Sur-Ron Light Bee swingarm is also forged 6061 monobloc. The difference between the stock part and the IZI Brothers swingarm doesn't come from the alloy. It comes from the geometry, the section thickness, and the quality of the process.

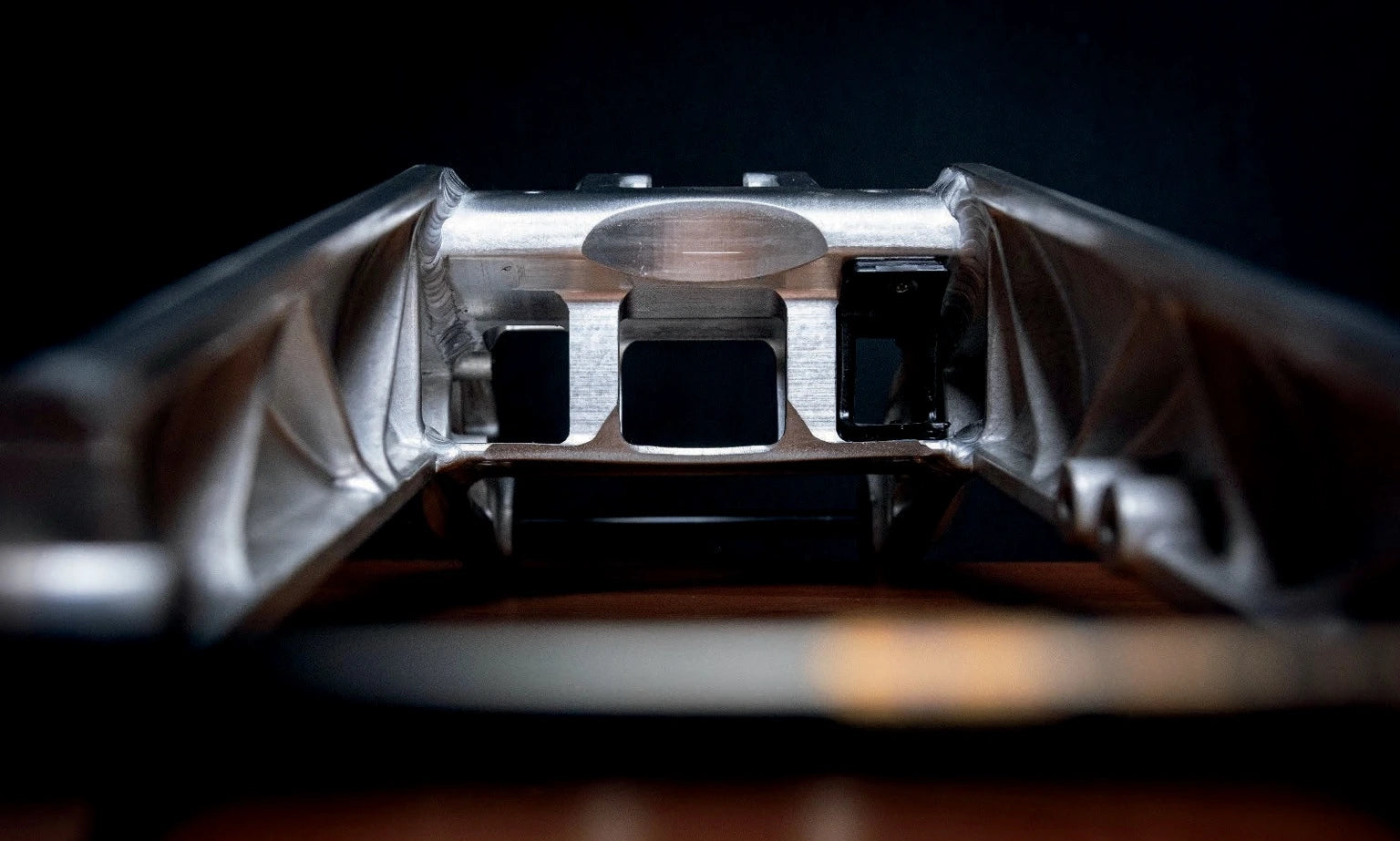

An IZI Brothers swingarm is built from three structural parts, joined into a single monobloc. Each part uses the manufacturing process best suited to its function.
Forged side arms. The two side arms, where the IZI Brothers marking sits, are forged from solid 6061 billet, then CNC-finished. Forging compacts and orients the metal structure by deformation, eliminating porosity and improving fatigue resistance.
Extruded central section. The central section is extruded from 6061, cut to length, then CNC-finished. Extrusion produces a continuous grain along the load path, with a clean cross-section optimized for the loads the part has to carry.
Welding into a monobloc. The three parts are joined by welding into a single monobloc structure. This is the stage that defines the global stiffness of the arm, and the one that requires 6061 over 7075 (which doesn't weld).
Post-weld heat treatment. The T6 temper is restored after welding. It's the most delicate step of the process, and the one most workshops skip or fail. Without a properly mastered T6, the welded zone stays a structural weak point.
Prototype after forging and welding, before final machining and surface finishing.
The temptation, on an aftermarket swingarm, is to redraw everything. Longer, wider, "optimized" geometry. We refused.
The Sur-Ron Light Bee has a playful character that comes in part from its proportions. Lengthen the arm and you shift the center of gravity, change the rake angle, modify the suspension kinematics. The bike turns into something else. So we kept the original length.
What changes is what needs to change.
The central section is resized to eliminate flex under load.
The rear dropout, where the wheel axle sits, is deliberately thickened. It's also what breaks the line of the arm and gives it its visual identity. The choice is technical and aesthetic at the same time, owned as such.
The bearing housings are redesigned to accept needle bearings instead of ball bearings.

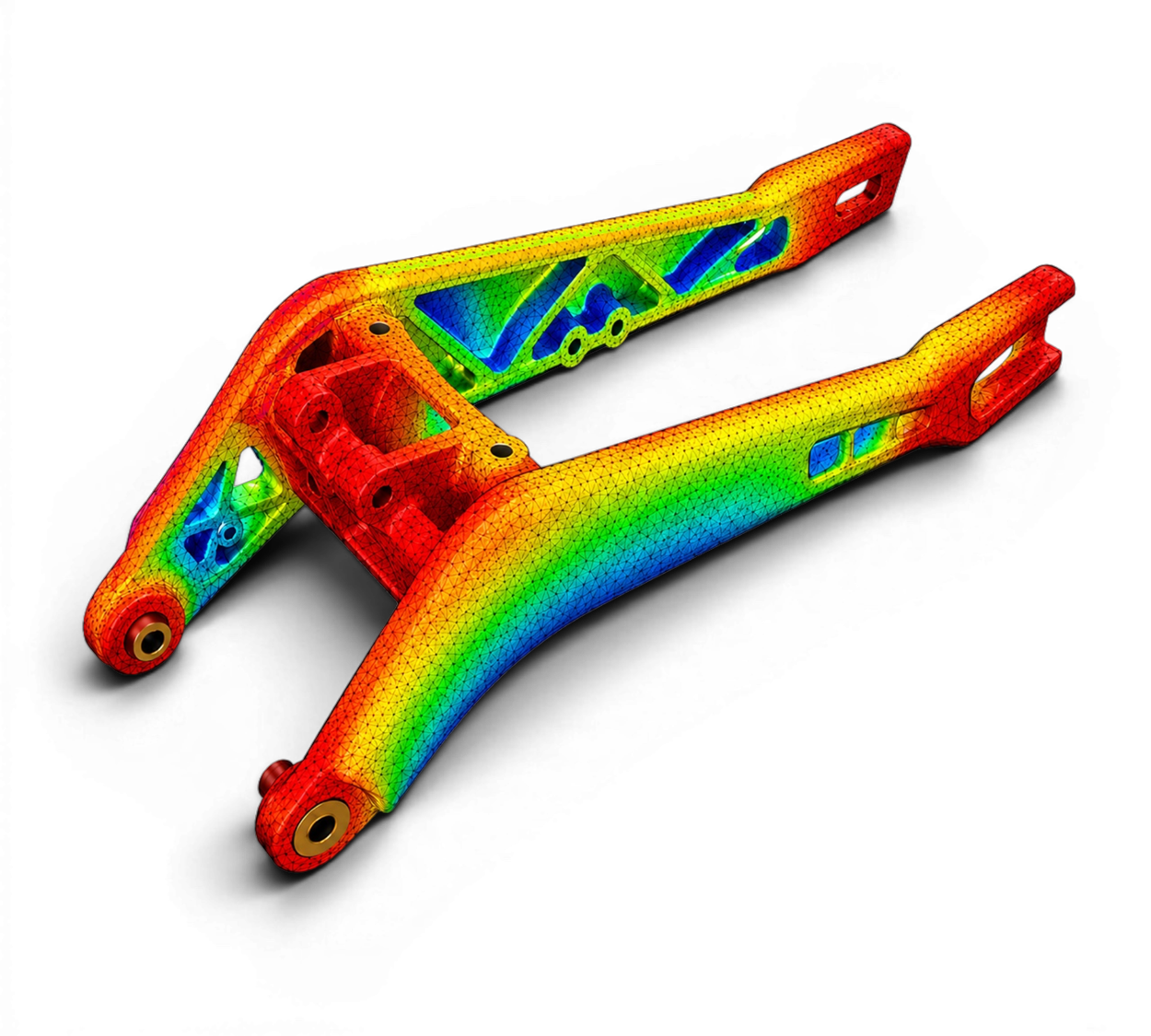

Stress distribution under riding load. Red zones identify the load-bearing areas we deliberately reinforced: pivot housing, lower arm, and rear axle dropout.
A ball bearing is designed for continuous rotation under moderate load. A needle bearing is designed for high radial load under oscillating motion.
A swingarm doesn't rotate. It pivots over a few degrees of amplitude, absorbs vertical impacts, transfers motor torque, takes the shock of every landing. That's exactly the load profile a needle bearing is built for.
On the Sur-Ron Light Bee, switching from ball to needle bearings isn't a cosmetic upgrade. It's an alignment between the part and its real use.
The Sur-Ron Light Bee stock axles are steel, in diameters borrowed from the bicycle world: 10 mm for the pivot, 12 mm for the rear wheel. Coherent with the original use of the machine. Insufficient as soon as the power goes up.
Our axles are CNC-machined Grade 5 titanium. At equivalent or larger diameter, they are 40% lighter than the steel equivalent. On an unsprung component, every gram removed improves suspension response. On a structural component, Grade 5 titanium offers higher fatigue resistance than the standard steel used on bicycle-spec axles.
It's an engineering choice, not a finish choice.

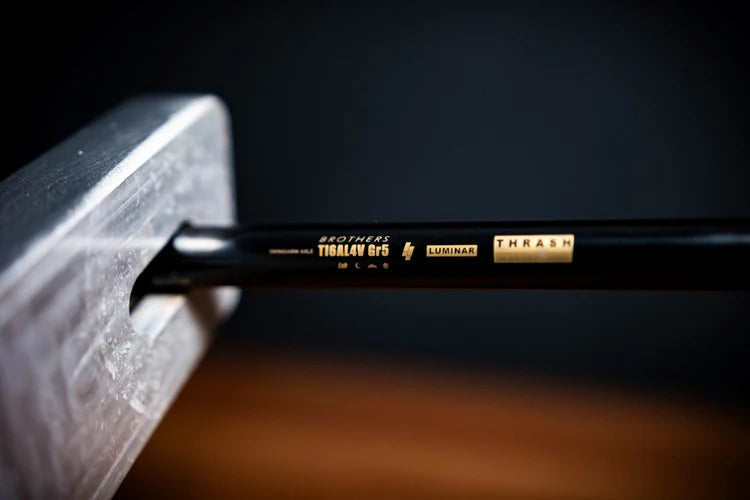

Grade 5 titanium swingarm axle, CNC-machined, laser-etched with the alloy specification.
The swingarm doesn't work alone. It interacts with the chain guide, the disc guard, the axle blocks, the mudguard, the rear axle, the shock axle. If a single one of these parts isn't sized for the new arm, the whole assembly loses what the swingarm gives back.
We drew all of them together. Visual coherence and technical coherence share the same logic: every part has a clear function, and every line serves something.
The nylon parts (chain guide, sliders) are injection-molded in proprietary tooling. They are individually replaceable. A wear part should be consumable, not disposable.

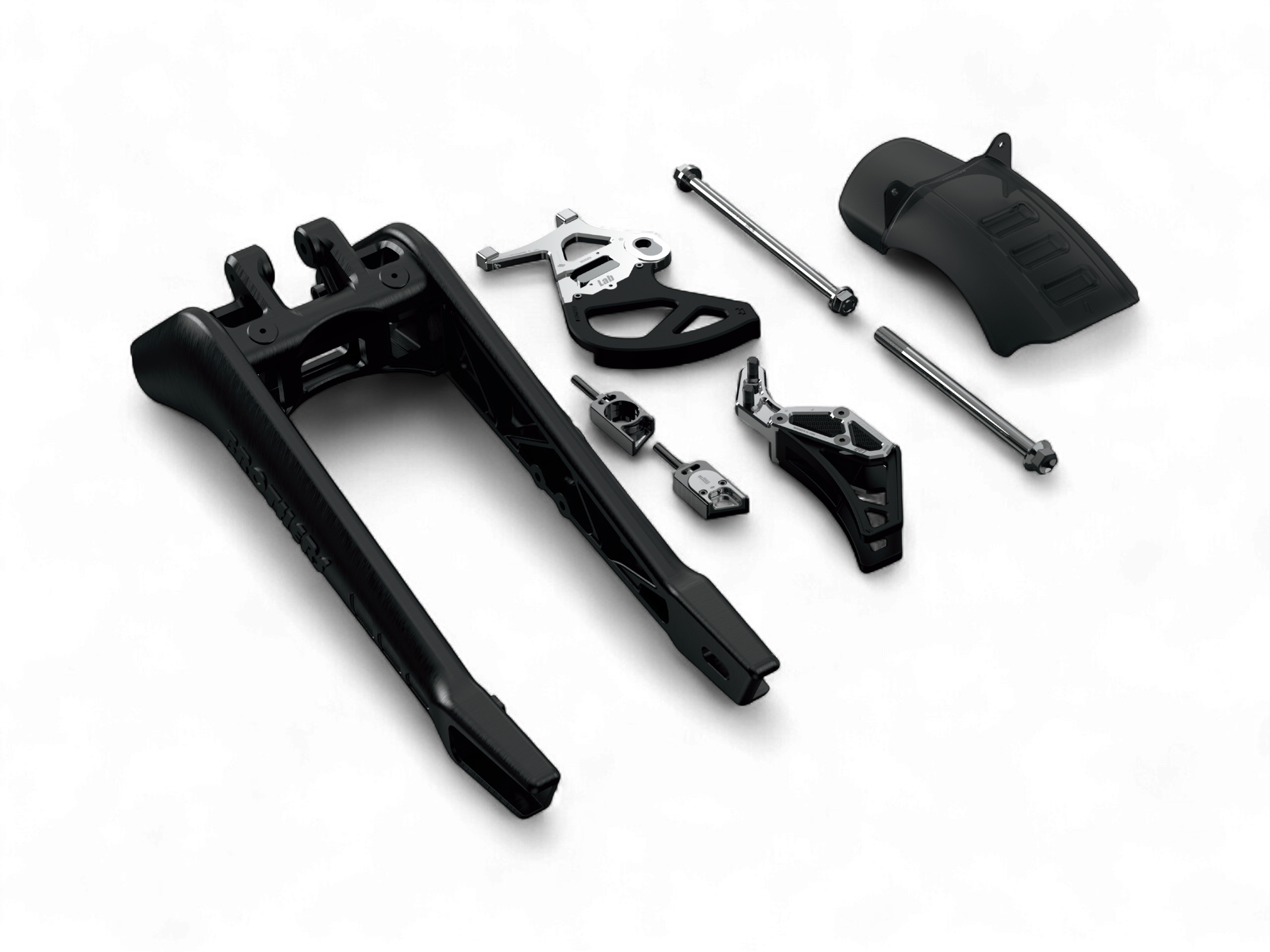

Swingarm Kit for Sur-Ron Light Bee. Seven components designed as one system: swingarm, chain guide, disc guard, axle blocks, rear axle, shock axle, mudguard.
We wanted a part that reads as raw, aggressive, minimal. Most aftermarket parts are upgrades. This one is a redesign. Timeless lines. A robust presence that doesn't need to be explained.
The laser marking is drawn in-house, on the part itself. It carries the model, the build, and the brand. It's a detail you only notice when you hold the part in your hand. That's exactly why it exists.
Minimalism here isn't a technical constraint. It's a choice. Less material in the wrong place. More material in the right place. Nothing that doesn't serve.
On paper, the IZI Brothers kit adds around 400g compared to the stock arm alone. On the bike, it removes the doubt.
The doubt is that moment when the rear feels loose under attack, when the line goes vague on hard terrain, when the rider lifts off instead of pushing through. A properly sized arm takes that away.
A structural part done right doesn't show itself while it works. You only notice it the day you put a stock arm back on the same bike, and you find what you had forgotten.
That's the point of this product. That's why we built it.
Built for the riders who pushed past the stock arm.
CNC-machined 6061-T6 monobloc. Grade 5 titanium hardware. Designed and built for Sur-Ron Light Bee.
